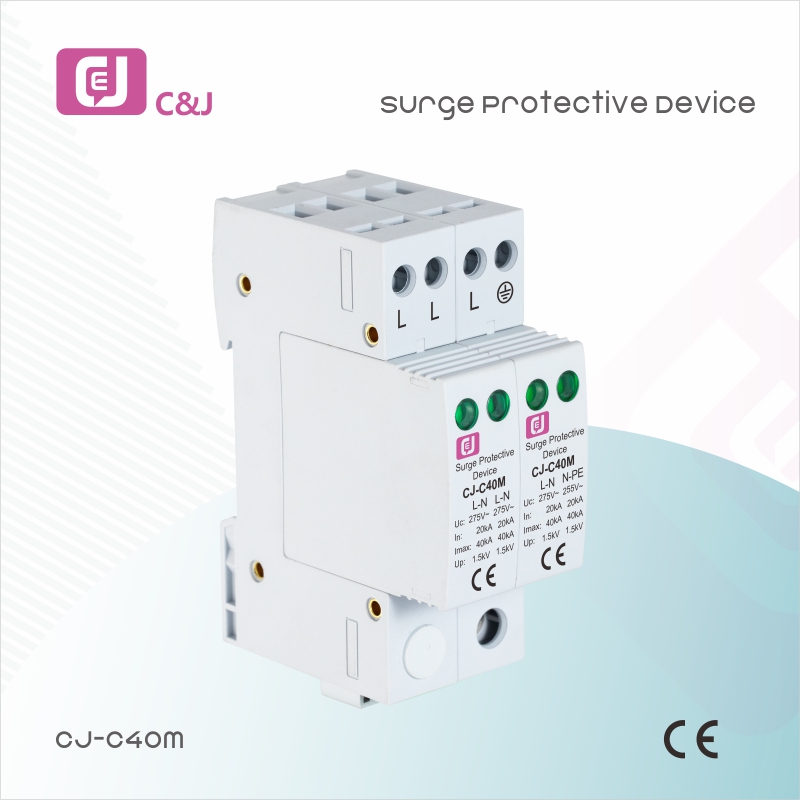

CJ-C40m 1.5ka 40ka Solar Surge Protective Device DC SPD for PV Solar System

 Construction and Feature
  • Location of Use:  Sub-Distribution Boards
  • Mode of Protection:  L-N, N-PE
  • Surge Ratings:  In = 20kA(8/20μs)
  • IEC/EN/UL Category:  Class I+II / Type 1+2
  • Protective Elements:  High Energy MOV and GDT
  • Housing:  Pluggable Design
  • Compliance:  IEC 61643-11:2011 / EN  61643-11:2012
  Surge protective device connected in parallel features a high impedance. In other words, the sum of the series impedance is equal to the impedance of one surge protective device. Once the transient overvoltage appears within the system, the device's impedance decreases, so surge current is driven through the surge protective device, bypassing the sensitive equipment. That is to protect equipment against overvoltage transients and disturbances, such as voltage spikes and electrical surges, frequency variations, and over-voltages caused by switching operations or lightning. When a user installs a surge strip or a surge protective device into a power line coming from a power utility that includes smoothing capacitors, surge suppressors are not necessary because these capacitors already protect from sudden changes in voltage level.

Products Details

Technical Data

IEC Electrical 150 275 320 385 440
Nominal AC Voltage (50/60Hz) 120V 230V 230V 230V 400V
Maximum Continuous Operating Voltage (AC) (L-N) Uc 150V 275V 320V 385V 440V
(N-PE) Uc 255V
Nominal Discharge Current (8/20μs) (L-N)/(N-PE) In 20kA/20kA
Maximum Discharge Current (8/20μs) (L-N)/(N-PE) Imax 40kA/40kA
Impulse Discharge Current (10/350μs) (L-N)/(N-PE) Iimp 7kA/25kA
Voltage Protection Level (L-N)/(N-PE) Up 1.0kV/1.5kV 1.5kV/1.5kV 1.6kV/1.5kV 1.8kV/1.5kV 2.0kV/1.5kV
Follow Current Interrupt Rating (N-PE) Ifi 100ARMS
Response Time (L-N)/(N-PE) tA <25ns/<100ns
Back-Up Fuse (max) 63A gL /gG
Short-Circuit Current Rating (AC) (L-N) ISCCR 25kA
TOV Withstand 5s (L-N) UT 180V 335V 335V 335V 580V
TOV 120min (L-N) UT 230V 440V 440V 440V 765V
mode Withstand Safe Fail Safe Fail Safe Fail Safe Fail
TOV Withstand 200ms (N-PE) UT 1200V
Operating Temperature Range Ta -40ºF to +158ºF[-40ºC to +70ºC]
Permissible Operating Humidity RH 5%...95%
Atmospheric pressure and altitude 80k Pa..106k Pa/-500m..2000m
Terminal Screw Torque (L-N) Mmax
(PE) Mmax 39.9 lbf-in[4.5 Nm]
Conductor Cross Section (L-N) 5 AWG(Solid, Stranded) / 7 AWG(Flexible)
16 mm²(Solid, Stranded) / 10 mm² (Flexible)
(PE) 2 AWG(Solid, Stranded) / 4 AWG(Flexible)
35 mm²(Solid, Stranded) / 25 mm2 (Flexible)
Mounting 35 mm DIN Rail,EN 60715
Degree of Protection IP 20 (built-in)
Housing Material Thermoplastic: Extinguishing Degree UL 94 V-0
Thermal Protection Yes
Operating State / Fault Indication Green ok / Red defect
Remote Contacts (RC) Optional
RC Switching Capacity AC:250V/0.5A;DC:250V/0.1A;125V/0.2A;75V/0.5A
RC Conductor Cross Section (max) 16 AWG (Solid) / 1.5 mm2(Solid)
RC Terminal Screw Torque 2.2 lbf·in [0.25 Nm]
