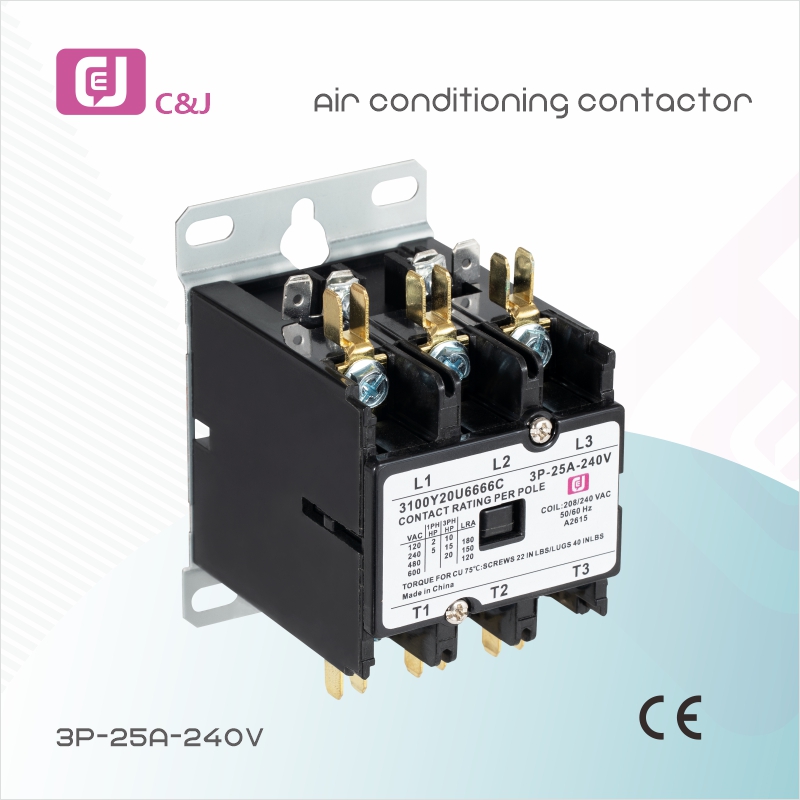

CJC2-3p 25A 40A Definite Purpose Magnetic AC Contactor for Air Conditioner

·Designed for Air Conditioning and Heating Equipment ·Any position mounting. ·Interchangeable mounting plate. ·Low voltage coil. ·Double break contacts ensure positive make and break.

Products Details

Technical Data

Insulating Material Contact block and carrier are high quality electricalgrade thermosetting resin
Temperature Range -40 ºF to 150 ºF
Mechanical Life Conforms to UL and ARI specifications
Electrical Life Conforms to UL and ARI specifications
Weight (approximate) 16 oz
Coils Frequency 50/60 Hz
Coil Insulation Class B (130)24 through 208/240 Volts AC
Termination Pressure connector and Double Q.C.
Operate 85% of nominal coil voltage;110% maximum sate operate
Duty Cycle Continuous


COIL DATA -25 and 30 Amp, 600 Volt Three Pole Normally Open (3 P.N.O.)

Steveco Number Coil Voltage AC Ress DC Current Nominal Max. Inrush
25 Amp 30 Amp (60 Hz) OHMS MA VA VA
CJC2-160 CJC2-163 24 7.2 187 4.5 52
CJC2-161 CJC2-164 120 180 37 4.5 52
CJC2-162 CJC2-165 208/240 720 19 4.5 52

CONTACT RATINGS -25 and 30 Amp, 600 Volt Three Pole Normally Open (3 P.N.O.)

Type Voltage 277 VAC 480 VAC 600 VAC
CJC2-160 Full Load 25 A 25 A 25 A
thru Lock Rotor 150 A 125 A 100 A
CJC2-162 Resistive 40 A 40 A 40 A
CJC2-163 Full Load 30 A 30 A 30 A
thru Lock Rotor 180 A 150 A 120 A
CJC2-165 Resistive 50 A 50 A 50 A
  COIL DATA -40 Amp, 600 Volt Three Pole Normally Open (3 P.N.O.)
Steveco Number Coil Voltage AC Ress DC Current Nominal Max. Inrush
40 Amp (60 Hz) OHMS MA VA VA
CJC2-170 24 7.2 187 4.5 52
CJC2-171 120 180 37 4.5 52
CJC2-172 208/240 720 19 4.5 52

Type Voltage 277 VAC 480 VAC 600 VAC
CJC2-170 Full Load 40 A 40 A 40 A
thru Lock Rotor 240 A 200 A 160 A
CJC2-172 Resistive 50 A 50 A 50 A
