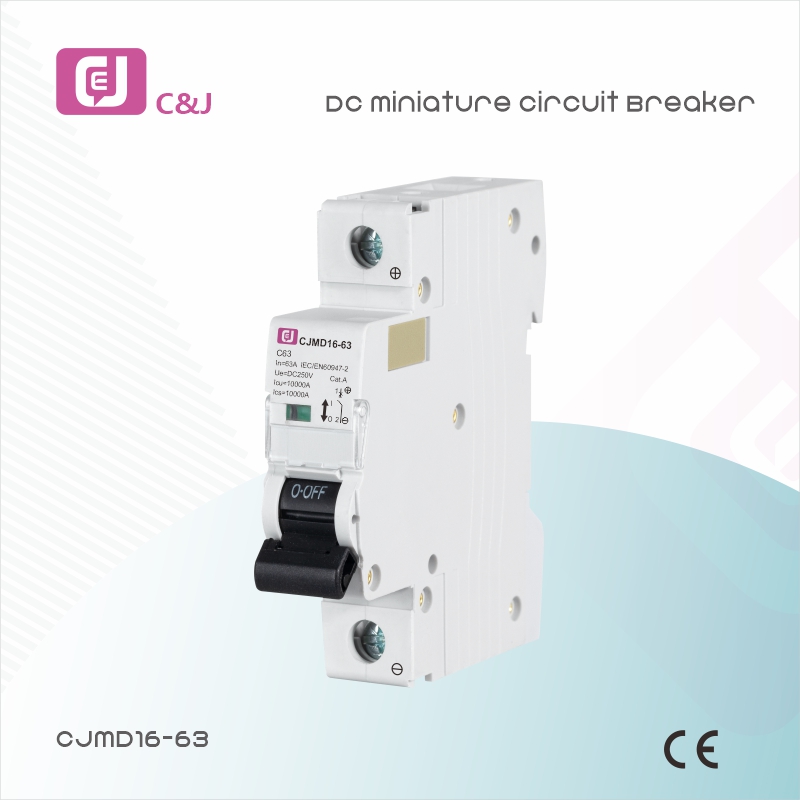

CJMD16-63 1-4p 250V-1000V 10ka DC MCB Miniature Circuit Breaker

·The state-of-art design Elegant appearance; cover and handle in arc shape make comfortable operation.Contact position indicating window.Transparent cover designed to carry label. ·Handle central-staying function for circuit fault indicating In case of overload, to protected circuit, MCB handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operatedmanually. ·High short-circuit capacity High short-circuit capacity 10KA for whole range and 15kA capacity for current rating up to 40A thanks to the powerful electric arc extinguishing system.Long electrical endurance up to 6000 cycles thanks to quick making mechanism. ·Handle padlock device MCB handle can be locked either at "ON" position or at"OFF" position to prevent unwanted operation of the product. ·Screw terminal lock device The lock device prevents unwanted or casual dismounting of connected terminals.

Products Details

Technical Data

Standard IEC60947-2
Pole No 1P,2P,3P,4P
Rated Voltage 1P:250V  2P:500V 3P:800V 4P:1000V
Rated Current In(A) 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63,
Tripping Curve B, C
Rated short-circuit breaking capacity 10kA
Rated impulse withstand voltage 6.2KV
Eletro-mechanical endurance 10000
Screw terminal M5
Rated torque 2.0N.m


Overload Current Protection Characteristics

Test procedure Type Test Current Initial State Tripping or Non-tripping Time Limit Expected Result Remark
A B,C 1.05In cold t≥1h(In≤63A)  t≥2h(In>63A) no tripping
B B,C 1.3In after test A t<1h(In≤63A) t<2h(In>63A) tripping Current in the 5s in th increase of stability
C B,C 2In cold 10s20s63A) tripping
D B 4In cold t≤0.2s no tripping Turn on the auxiliary switch to
E C 8In close the current
D 6In cold t<0.2s tripping
B 12In
  DC Miniature circuit breaker 22
