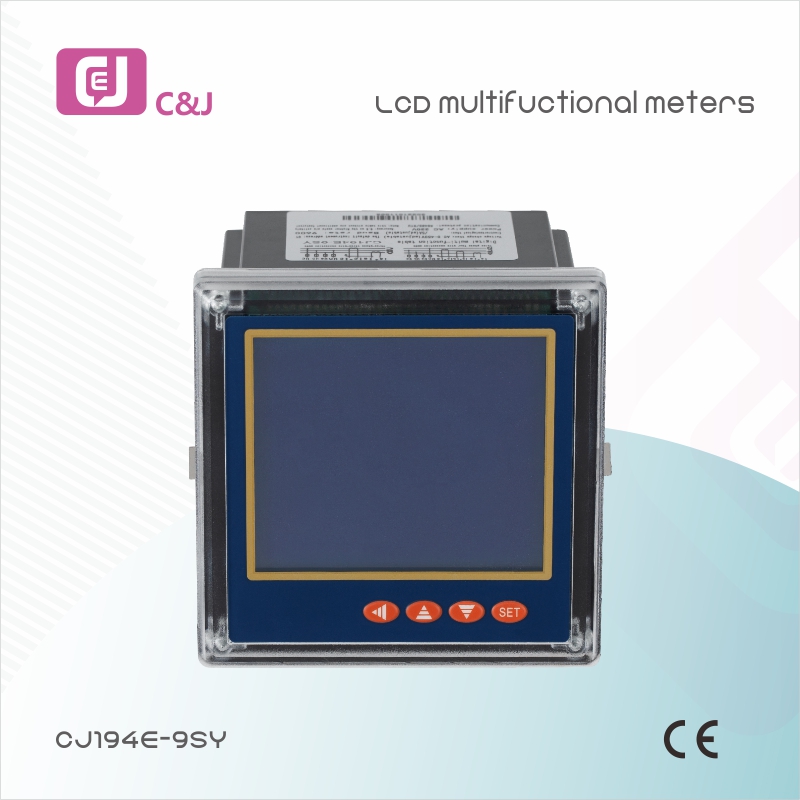

CJ194E-9SY 220V AC RS485 LCD Multifuctional Meters Power Meter

  • Intelligent Digital Meter is suitable for measuring and  displaying electrical parameters of current in power grid and automation systems. It is a new design meter with advantages of high accuracy, good stability, and resistance to vibration.
  • LCD multifunctional meters can accurally measure and display all the common electrical parameters of three phase power grid, such as three phase voltage and current, active power, inactive power, power factor, frequency, active energy, reactive energy, communication interface and energy pulse output function. With MODBUS-RTU communication protocol, the meters can display by LCD and achieve RS-485 remote digital communication. With features of convienient installation, easy wiring and matainance proaramable at site etc. the meters can also proceed the networking communicaton between detterent PLC and industrial control computers among the industry.
send email to us

Products Details

Products Features

Measurement Three phase voltage and current, active power, inactive power, power factor, frequency, active energy,reactive energy etc
Display Highly visible LCD with STN blue screen, wide viewing angle and high qulity
Communication RS485 communication.MODBUS-RTU Protocol
Output Two circuits energy pulse output (pulse constant: 3200imp/kwh); four circuits 4-20mA transmittingoutput(available for choosing)
Extension Output signal through current and voltage transformer, programable input parameter ratio
Application Inlet wire, bus couple and important distribution circuits, suitable for switchaear types of GCS.GCK.MNS,GGD etc
LCD Multifuctional Meters

Our Advantages

CEJIA has over 20 years of experience in this industry and has built a reputation for providing quality products and services at competitive prices. We are proud to be one of the most reliable electrical equipment suppliers in China with more. We attach great importance to product quality control from raw materials procurement to finished product packaging. We provide our customers with solutions that meet their needs on a local level, while also giving them access to the latest technology and services available. We are able to produce large volumes of electrical parts and equipment at very competitive prices in our state-of-the-art manufacturing facility located in China.
