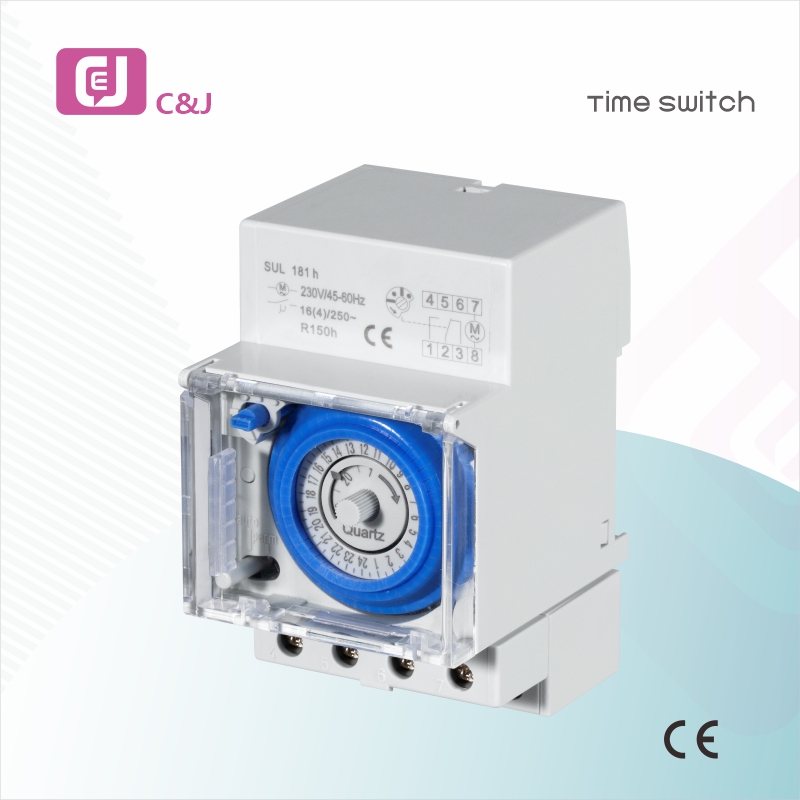

Sul181h 24h AC220V DIN Rail Timer Switch Relay Mechanical Electrical Time Switch

Its can be widely used in neon lights, water heater,street light,stair lamp,breeding,water garden,motor,advertising box office facilities, automatic control in the civil or industrial electricity need timing control occasions, all can according to the time for automatic control.

Products Details

Technical Data

Type SUL181h SYN161h
Operating voltage 230-240 VAC / 110VAC / 24VDC / 12VDC
Frequency 50-60Hz
Number of channels 1
Width 3 modules
Installation type DIN-rail
Type of connection Screw terminals
Drive Quartz-controlled stepper motor
Program Daily program
Power reserve 7 days -
Max. switching capacity at 250 V AC, cos φ = 1 16 A
Max. switching capacity at 250 V AC, cos φ = 0.6 4 A
Incandescent/halogen lamp load 1100W
LED lamp < 2 W 20W
LED lamp > 2 W 180W
Shortest switching time 30 min
Programmable every 30 min
Number of switching segments 48
Time accuracy at 25 °C ≤ ± 2 s/day(Quartz)
Type of contact Changeover contact
Switching output Potential-free and phase-independent
Power consumption 1.5VA
Test approvals CE
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Type of protection IP 20
Protection class II in accordance with EN 60730-1
Ambient temperature -10 °C +50 °C
