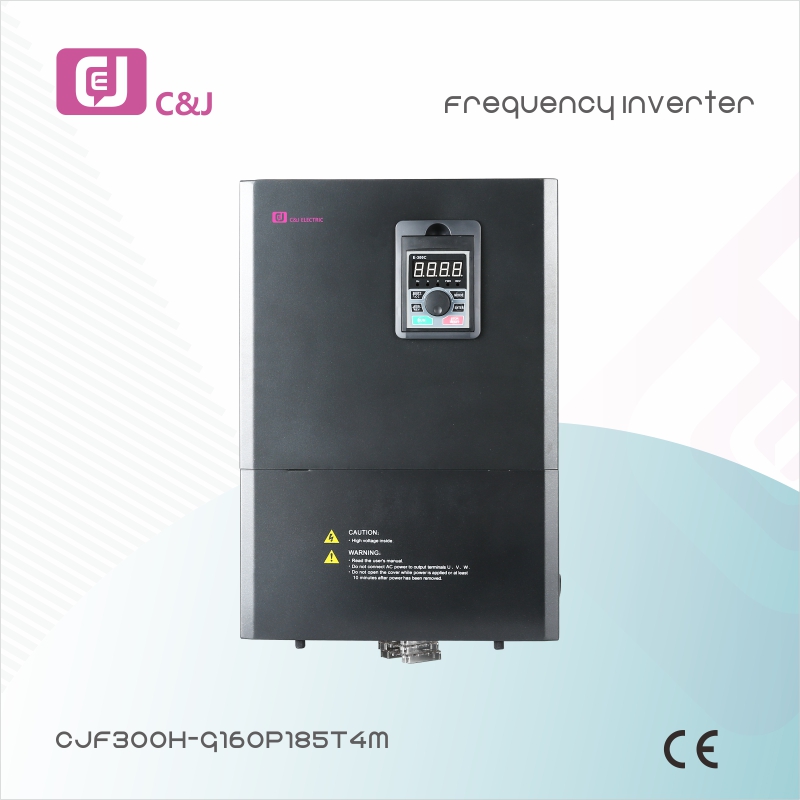

CJF300H-G160P185T4M AC380V Three Phase VFD Variable Speed Motor Drive High Performance Frequency Inverter

CJF300H-G22P30T4M series high Performance vector control frequency inverter is CEJIA Electrical developed the new type frequency inerter.General type and fan/pump type are in one model.support Modbus communication protocol.can be widely used to control and drive the speed of induction motors and synchronous motor.superior performance, abundant functions,easy operation,high accountability and a complete range of specifications.Can fully meet the individual needs of customers in the industry.

Products Details

Frequency Inverter

High Performance Vector Control Frequency Inverter CJF300H Series frequency inverter has the good effect energy conservation,fine speed adjustment performance, stable operation, electrical machinery soft start, protect function and self diagnostics fault and other advantages.

Demonstration Of The Model

CJF:Inverter Model 300H:Design Number G:G/P in combination; G:Constant torque 5R5:Motor Power Code; 5.5kW P:G/P in combination; P:Variable torque 7R5:Motor Power Code; 7R5:7.5kW T:Voltage Classs; S:Single Phase; T:Three Phase 4:Voltage Class; 2:220V; 4:380V M:Integration IGBT; S:Mosfet D:Built-in braking unit

Main Features

  • CJF300H Series frequency inverter are high performance open loop vector inverters for controlling asynchronous AC induction motors.
  • Output frequency :0-600Hz.
  • Multiple password protection mode.
  • Remote control operation keypad, convenient for remote control.
  • V/F curve & multi-inflection point setting, flexible configuration.
  • Keyboard parameter copy function.easy to set the parameters for multi-inverters.
  • Wide industry application. to expand special function according to different industries.
  • Multiple hardware and software protection and optimized hardware for anti-interference technology.
  • Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
  • Unique adaptive control technology.Auto current limiting and voltage limiting and under-voltage restrain.
  • Optimized external installation and internal structure and independent air flue design, fully enclosed electrical space design.
  • Output automatic voltage regulation function (AVR),automatically adjust the output pulse width. to eliminate the influence of the grid change on load.
  • Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,pressure and flow, and reduce the cost of the control system.
  • Standard MODBUS communication protocol.Easy to achieve the communication between PLC,IPC and other industrial equipments.


Technical Data

Input Voltage (V) Output Voltage(V) Power Range (kW)
Single phase 220V±20% Three phase 0~lnput Voltage 0.4kW~3.7kW
Three phase 380V±20% Three phase 0~lnput Voltage 0.75kW~630kW
G type Overload capacity :150% 1 minute; 180%1 second;200% transient protection.
P type Overload capacity :120% 1 minute; 150% 1 second;180% transient protection.

Inverter Outline& Mounting Dimension (Unit:mm)

Inverter Model Power(kW)G/P Current(A) Dimension(mm)
H H1 W W1 D d
CJF300H-G0R4S2SD 0.4 2.4 185 175 118 108 170 5
CJF300H-G0R7S2SD 0.75 4.5 185 175 118 108 170 5
CJF300H-G1R5S2SD 1.5 7 185 175 118 108 190 5
CJF300H-G2R2S2SD 2.2 10 185 175 118 108 190 5
CJF300H-G3R7S2SD 3.7 16 215 205 145 135 193 5
CJF300H-G0R7T4SD 0.75 2.5 185 175 118 108 170 5
CJF300H-G1R5T4SD 1.5 3.7 185 175 118 108 170 5
CJF300H-G2R2T4SD 2.2 5 185 175 118 108 170 5
CJF300H-G3R7/P5R5T4MD 3.7/5.5 9.0/13 85 175 118 108 190 5
CJF300H-G5R5/P7R5T4MD 5.5/7.5 13/17 215 205 145 135 193 5
CJF300H-G7R5/P011T4MD 7.5/11 17/25 215 205 145 135 193 5
CJF300H-G011/P015T4MD 11月15日 25/32 265 253 185 174 215 6
CJF300H-G015/P018T4MD 15/18.5 32/37 265 253 185 174 215 6
CJF300H-G018/P022T4MD 18.5/22 37/45 385 370 220 150 210 7
CJF300H-G022/P030T4MD 22/30 45/60 385 370 220 150 210 7
CJF300H-G030/P037T4M 30/37 60/75 450 435 260 180 225 7
CJF300H-G037/P045T4M 37/45 75/90 450 435 260 180 225 7
CJF300H-G045/P055T4M 45/55 90/110 510 490 320 220 275 9
CJF300H-G055/P075T4M 55/75 110/150 510 490 320 220 275 9
CJF300H-G075/PO90T4M 75/90 150/176 570 550 380 260 320 9
CJF300H-G090/P110T4M 90/110 176/210 570 550 380 260 320 9
CJF300H-G110/P132T4M 110/132 210/253 570 550 380 260 320 9
CJF300H-G132/P160T4M 132/160 253/300 570 550 380 260 320 9
CJF300H-G160/P185T4M 160/185 300/340 800 775 460 350 330 11
CJF300H-G185/P200T4M 185/200 340/380 800 775 460 350 330 11
CJF300H-G200/P220T4M 200/220 380/420 900 870 550 400 330 13
CJF300H-G220/P250T4M 220/250 420/470 900 870 550 400 330 13
CJF300H-G250/P280T4M 250/280 470/520 950 920 650 550 385 13
CJF300H-G280/P315T4M 280/315 520/600 950 920 650 550 385 13
CJF300H-G160/P185T4M 160/185 300/340 1100 460 330 cabinet
CJF300H-G185/P200T4M 185/200 340/380 1100 460 330 cabinet
CJF300H-G200/P220T4M 200/220 380/420 1200 550 330 cabinet
CJF300H-G220/P250T4M 220/250 420/470 1200 550 330 cabinet
CJF300H-G250/P280T4M 250/280 470/520 1300 650 385 cabinet
CJF300H-G280/P315T4M 280/315 520/600 1300 650 385 cabinet
CJF300H-G315/P350T4M 315/350 600/640 1600 660 415 cabinet
CJF300H-G350/P400T4M 350/400 640/690 1750 750 470
CJF300H-G400/P450T4M 400/450 690/790 1750 750 470
CJF300H-G450/P500T4M 450/500 790/860 1900 950 520
CJF300H-G500/P560T4M 500/560 860/950 1900 950 520
CJF300H-G560/P630T4M 560/630 950/1100 1900 950 520
CJF300H-G630T4M 630 1100 1900 950 520
