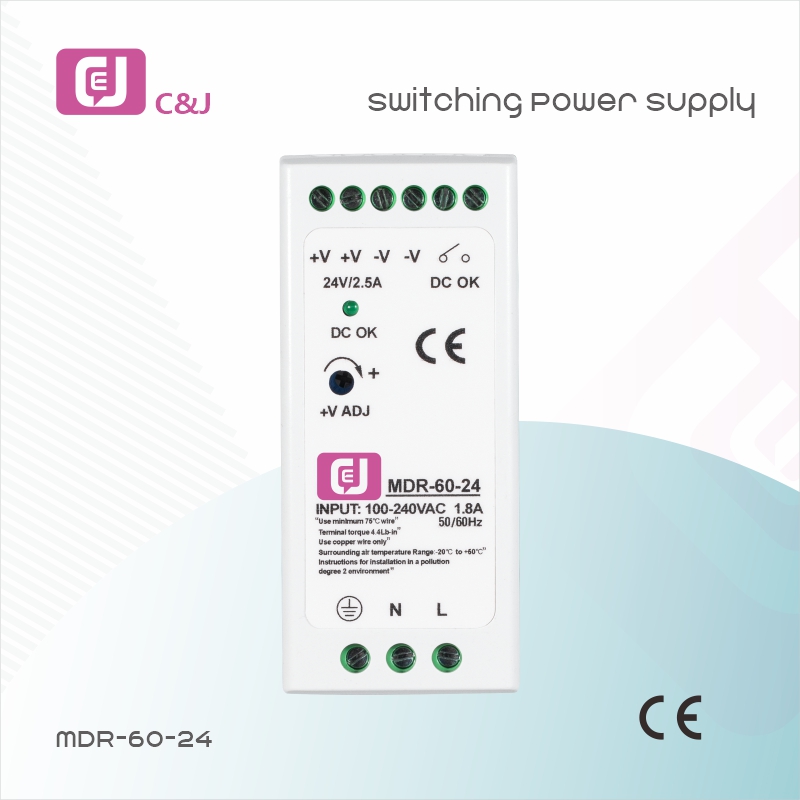

MDR-60-24 New Style AC to DC 100W Industrial DIN Rail Single Output Switching Power Supply

MDR-10,20,40,60,100 series is a 10,20,40,60,100W single output closed power supply, with a 30mm low profile design, using 85-264VAC full range AC input series to provide 5V,12V,15V,24V,36V and 48V output. ln addition to efficiency as high as 91.5%,the metal mesh enclosure is designed to enhance the heat dissipation capability so that the MDR-10,20,40,60,100 operates in the temperature range from -30ºC to +70ºC without fans. It provides ultra-low no-load power consumption (less than 0.3W), which makes the terminal system easy to meet the intern-ational energy requirements. MDR-10,20,40,60,100 has complete protection function and anti-5G vibration capability;It conforms to EN 60950-1,EN 60335-1,EN 61558-1/-2-16 GB4943 international saety regulations; MDR-10,20,40,60,100 series provides a cost-effective solution for various industrial applications.

Products Details

Technical Data

MDR-10,20 Rail type switch power supply
Type Technical indicators
Output DC voltage 5V 12V 15V 24V
Ripple and noise <80mV <120mV <120mV <150mV
Voltage regulation range ±10%
Linear adjustment rate ±1%
Load rregulation rate ±5% ±3% ±3% ±2%
Input Star up time 1000ms,30ms,25ms:110VAC     500ms,30ms,120ms:220VAC
Voltage range/frequency 85-264VAC/120VDC-370VDC  47Hz-63Hz
Efficiency(typcial) >77% >81% >81% >84%
Shock current 110VAC 35A.220VAC 70A
Protection characteristics Short circuit protection 105%-150% Type:protection mode: burp mode automatic recovery after the abnormal condition is lifted
Over voltage protection Output voltage is 135%>, close the output.When the abnormal condition is lifted,it will resume automatically
Environmental science Working temperature and humidity -20ºC~+70ºC;20%~90RH
Storage temperature and humidity -40ºC~+85ºC; 10%~95RH
Security Pressure resistance Input-output :3KVAC
Isolation resistance Input-output and input-shell, output-shell:500VDC/100mΩ
Other Size 22.5*90*100mm(L*W*H)
Net weight/gross weight 170/185g
Remarks (1) Measurement of ripple and noise: Using a 12"twisted-pair line with a capacitor of 0.1uF and 47uF in parallel at the terminal,the measurement is carried out at 20MHz bandwidth.(2)Efficiency is tested at the input voltage of 230VAC, rated load and 25ºC ambient temperature.Accuracy:including setting error,linear adjustment rate and load adjustmient rate.Test method of linear adjustment rate: testing from low voltage to high voltage at rated loadLoad adjustment rate test method: from 0%-100% rated load.The start-up time is measured in the cold start state, and the fast frequent switch machine may increase the startup time.When the altitude is above 2000 meters, the operating temperature should be lowered by 5 /1000.

Type MDR-10
DC voltage 5V 12V 15V 24V
Rated current 2A 0.84A 0.67A 0.42A
Rated power 10W 10W 10W 10W
Voltage precision ±5% ±3% ±3% ±2%
Working current 0.33A/110VAC 0.21A/230VAC

Type MDR-20
DC voltage 5V 12V 15V 24V
Rated current 3A 1.67A 1.34A 1A
Rated power 15W 20W 20W 24W
Voltage precision ±2% ±1% ±1% ±1%
Working current 0.33A/110VAC 0.21A/230VAC

MDR-40,60 Rail type switch power supply
Type Technical indicators
Output DC voltage 5V 12V 24V 48V
Ripple and noise <80mV <120mV <150mV <200mV
Voltage regulation range ±10%
Linear adjustment rate ±1%
Load rregulation rate ±1% ±1% ±1% ±1%
Input Star up time 500ms,30ms,25ms:110VAC     500ms,30ms,120ms:220VAC
Voltage range/frequency 85-264VAC/120VDC-370VDC  47Hz-63Hz
Efficiency(typcial) >78% >86% >88% >88%
Shock current 110VAC 35A.220VAC 70A
Protection characteristics Short circuit protection 105%-150% Type:protection mode: burp mode automatic recovery after the abnormal condition is lifted
Over voltage protection Output voltage is 135%>, close the output.When the abnormal condition is lifted,it will resume automatically
Environmental science Working temperature and humidity -20ºC~+70ºC;20%~90RH
Storage temperature and humidity -40ºC~+85ºC; 10%~95RH
Security Pressure resistance Input-output :3KVAC lasted for 1 minute
Isolation resistance Input-output and input-shell, output-shell:500VDC /100mΩ
Other Size 40*90*100mm(L*W*H)
Net weight/gross weight 300/325g
Remarks (1)Measurement of ripple and noise: Using a 12"twisted-pair line with a capacitor of 0.1uF and 47uF in parallel at the terminal,the measurement is carried out at 20MHz bandwidth.(2)Efficiency is tested at the input voltage of 230VAC, rated load and 25ºC ambient temperature.Accuracy:including setting error,linear adjustment rate and load adjustmient rate.Test method of linear adjustment rate: testing from low voltage to high voltage at rated loadLoad adjustment rate test method: from 0%-100% rated load.The start-up time is measured in the cold start state, and the fast frequent switch machine may increase the startup time.When the altitude is above 2000 meters, the operating temperature should be lowered by 5/1000.

Type MDR-40
DC voltage 5V 12V 24V 48V
Rated current 6A 3.3A 1.7A 0.83A
Rated power 30W 40W 40.8W 39.8W
Voltage precision ±2% ±1% ±1% ±1%
Working current 1.1A/110VAC 0.7A/220VAC

Type MDR-60
DC voltage 5V 12V 24V 48V
Rated current 10A 5A 2.5A 1.25A
Rated power 50W 60W 60W 60W
Voltage precision ±2% ±1% ±1% ±1%
Working current 1.8A/110VAC 1A/230VAC

MDR-100 Rail type switch power supply
Type Technical indicators
Output DC voltage 12V 24V 48V
Rated current 7.5A 4A 2A
Rated power 90W 96W 96W
Ripple noise <120mV <150mV <200mV
Voltage accuracy ±1% ±1% ±1%
Output voltage adjustment range ±10%
Load regulation ±1% ±1% ±1%
Linear regulation ±1%
Input Voltage range 85-264VAC 47Hz-63Hz(120VDC-370VDC)
Power factor PF≥0.95/230VAC PF≥0.98/115VAC(full load)
Efficiency is not >83% >86% >87%
Working current <1.3A 110VAC <0.8A 220VAC
lmpact of current 110VAC 35A 220VAC 70A
Start, rise, hold time 3000ms,50ms,20ms:110VAC  3000ms,50ms,50msms:220VAC
Protection characteristics Overload protection 105%-150%Type:protection mode:burp mode automatic recovery after the abnormal condition is lifted
Over voltage protection Output voltage is 135%>, close the output. When the abnormal condition is lifted, it will resume automatically
Over temperature protection >85°when close the output temperature drop after power supply recovery after restart
Environmental science Working temperature and humidity -20ºC-+70ºC;20%-90RH
Storage temperature, humidity -40ºC-+85ºC;10%-95RH
Security Pressure resistance Input-output:3kvac lasted for 1 minute
lsolation resistance Input-output and input-shell, output-shell:500 VDC/100mΩ
Other Size 55*90*100mm
Net weight/gross weight 420/450g
Remarks (1)Measurement of ripple and noise:Using a 12"twisted-pair line with a capacitor of 0.1uF and 47uF in parallel at the terminal,the measurement is carried out at 20MHz bandwidth.(2)Efficiency is tested at the input voltage of 230VAC, rated load and 25ºC ambient temperature.Accuracy:including setting error,linear adjustment rate and load adjustmient rate.Test method of linear adjustment rate: testing from low voltage to high voltage at rated load adjustment rate test method: from 0%-100% rated load.The start-up time is measured in the cold start state, and the fast frequent switch machine may increase the startup time.When the altitude is above 2000 meters, the operating temperature should be lowered by 5/1000.

Application

A switching power supply is a power supply device that converts alternating current into direct current. Its advantages are high efficiency and energy saving, stable output voltage and so on. Switching power supply is suitable for a wide range of fields, let's take a look at it in detail. 1.Computer field In different computer equipment, switching power supply is widely used. For example, in a desktop computer, a switching power supply of 300W to 500W is generally used for power supply. On the server, a switching power supply of more than 750 watts is often used. Switching power supplies provide high-efficiency outputs to meet the high power demands of computer equipment. 2.Industrial equipment field In the field of industrial equipment, switching power supply is an essential power supply device. It helps management control the normal operation of equipment and also provides backup power for equipment in the event of failure. Switching power supply can be used in robot control, vision power supply of intelligent electronic equipment and other fields. 3.Communication equipment field In the field of communication equipment, switching power supply also has a wide range of applications. Broadcasting, television, communications, and computers all require switching power supplies to ensure continuous power supply and maintain state stability. The power supply of the equipment can determine the stability of communication and information transmission. 4.Household appliances Switching power supplies are also applicable to the field of household appliances. For example, digital equipment, smart home, network set-top boxes, etc. all need to use switching power supply equipment. In these application fields, the switching power supply not only needs to meet the high-efficiency and stable output requirements, but also needs to have the advantages of miniaturization and light weight. In short, switching power supply, as an efficient and stable power supply device, has been widely used in various fields. In the future, with the continuous advancement of technology, switching power supplies will be more widely used and promoted.
