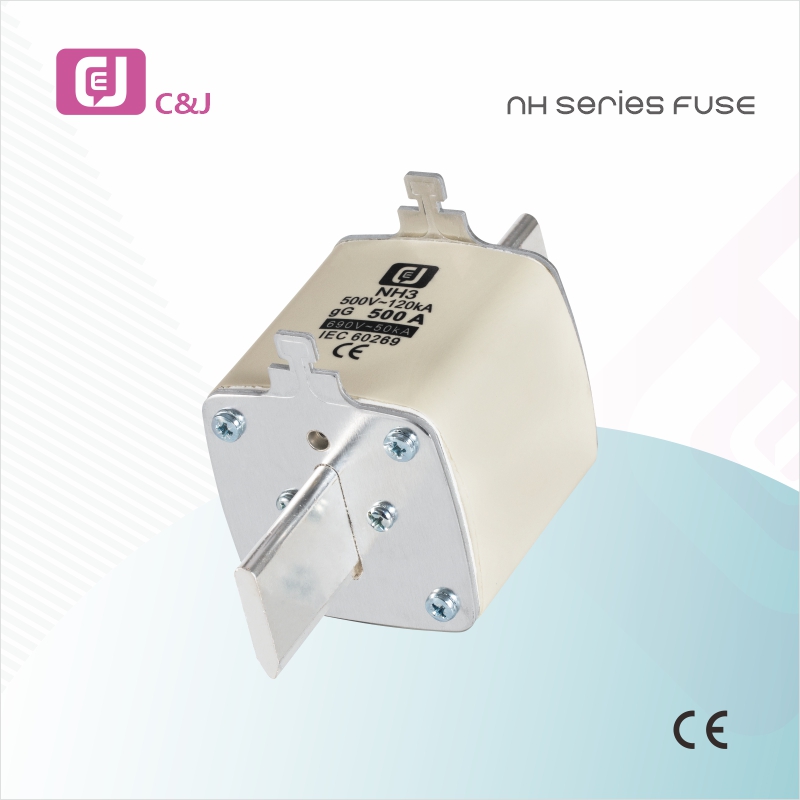

NH3 low voltage AC500V 690V DC440V Square Ceramic Fuse with fuse holder

Products Details

Product Description

NH series fuse is a square ceramic body fuse which is widely used in the industrial field. This series of fuses is sized according to IEC 60269 from NH000-NH4. This series of fuses is available in gG class and has extremely high breaking capacity in a compact body. Dual indicator system available.

Features & Benefits

  • High breaking capacity
  • Reliable dual indicator system
  • IEC 60269-1 and 2, DIN 43620


Industrial fuse links for a wide variety of applications.

Supply Ability

100000 Piece/Pieces per Month

Packaging Details

packing by standard export carton, or according to customer's request

Technical Data

Size Rated voltage (V) Rated current (A) Weight (g)
NH00C AC500/690V     DC 440V 2,4,6,10,16,20,25,32,35,40,50,63,80,100 145
NH00 AC500/690V     DC 440V 2,4,6,10,16,20,25,32,40,50,63,80,100,125,160 180
NH0 AC500/690V     DC 440V 4,6,10,16,20,25,32,40,50,63,80,100,125,160 250
NH1 AC500/690V     DC 440V 63,80,100,125,160,200,224,250 460
NH2 AC500/690V     DC 440V 80,100,125,160,200,224,250,300,315,355,400 680
NH3 AC500/690V     DC 440V 300,315,355,400,425,500,630 900
NH4 AC500/690V     DC 440V 630,800,1000,1250 2200
