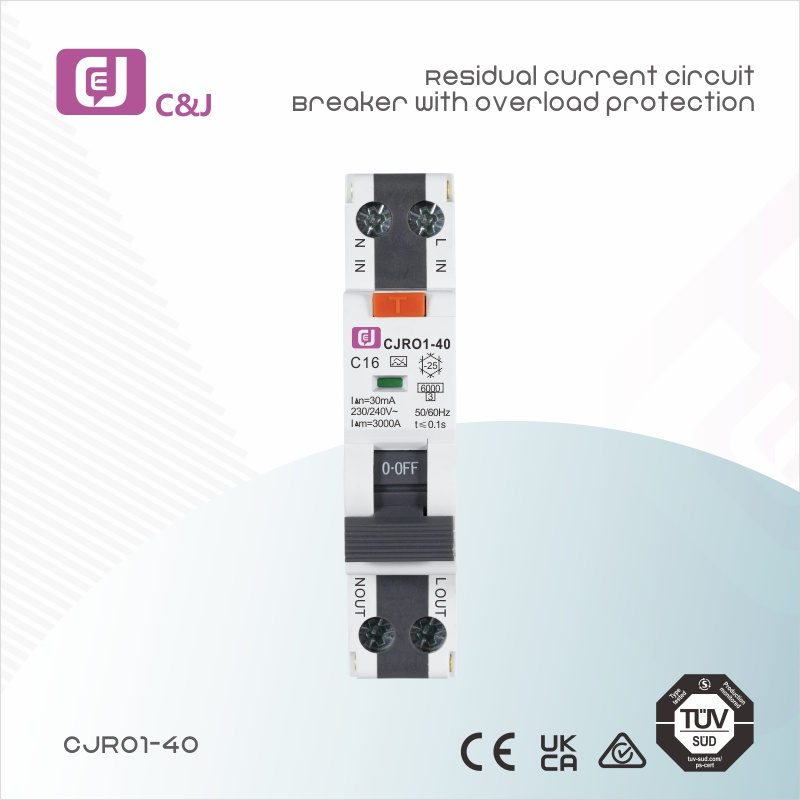

18mm Single Module RCBO 6KA 1P+N B&C Curve CJR01-40(NEW)

CJR01-40 Residual Current circuit breaker with overload protection (RCBO) ensure electrical safety in homes and similar situations, such as offices and other buildings as well as for industrial applications by protecting electrical installations against leakage Current reach to 30mA and against overloads and short circuits. Once a fault is detected, the RCBO automatically switches off the electrical circuit to prevent risk to the people and prevent damage to wires and to avoid the risk of fire. Warranting reliability and safety for people and assets, RCBO are equipped with AC, A type. The AC type is a common type use for homes, A type with pulse DC protection, normally the rated current is 6, 8, 10, 13, 16, 20, 25, 32, 40A, leakage current protection is 10mA, 30mA, 100mA, 300mA and rated voltage is 240(230)~VAC. frequency is 50/60Hz. according to IEC61009/EN61009 standards.

Products Details

Features

  • Neoteric in structure, light in weight, reliable and excellent in performance.
  • High breaking capacity, can trip quickly
  • High fire-resistant and shockproof plastics of its case and items

Technical Data

Standard Unit IEC/EN IEC/EN/AS/NZS 61009-161009-1 ESV Compliant61009-1
Electrical features Type(wave form of the earth leakage sensed) Electro-magnetic type, electronic type
Rated current In A A,AC
Poles P 1P+N
Rated voltage V 240V(230V)~
Rated Current 6A,8A,10A,13A,16A,20A,25A,32A,40A
Module size 18mm
Curve type B&C Curve
Rated sensitivity I△n A 0.01,0.03,0.1,0.3,0.5
Insulation voltage Ui V 500
Rated residual making and breaking capacity I△m A 630
Short-circuit current I△c A 6000
SCPD fuse A 6000
Rated frequency Hz 50/60
Pollution degree 2
Mechanical features Electrical life t 4000
Mechanical life t 10000
Breaking capacity A 6000A
Protection degree IP20
Ambient temperature (with daily average ≤35℃) -25~+40℃
Storage temperature -25~+70℃
lnstallation Terminal connection type Cable/Pin-type busbar/U type busbar
Terminal size top / bottom for cable mm² 16
AWG 18-3
Terminal size top / bottom for busbar mm² 16
AWG 18-3
Tightening torque N*m 1.2
In-Ibs 22
Connection On DIN rail 35mm by means of fast clip device
Mounting Plug-in type
