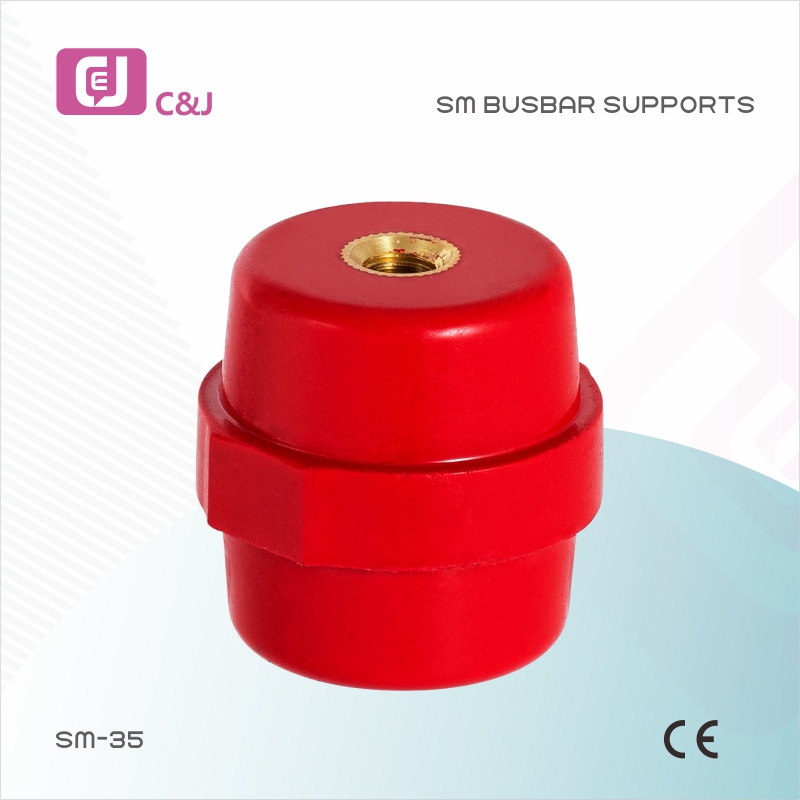

SM-35 BMC/SMC Standoff Composite Busbar Insulator

Busbar insulator is mainly used for low voltage power distribution cabinets, frequency converters, and other products.By connecting the busbar support copper, it plays a role in fixing, supporting and insulating. Busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is the excellent choice for fixed busbar of low-voltage power distribution cabinets.

Products Details

Specifications

  • Size: SM25,SM30,SM35,SM40,SM45,SM51,SM76,SM-7105,SM-7100,SM-7120,SM-7160
  • Tensile strength:600LBS
  • Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties


Advantages

  • The products have excellent insulation properties,high strenght,high temperature resistant,safe and reliable,tated voltage 660V is good choice for low voltage power distribution cabinet fixed bus.
  • Using SMC unsaturated resin hot pressing. Mainly used for high and low voltage power distribution cabinet,inverter,power distribution box,supporting the connecting bus etc.
  • The product has excellent insulation properties,high strength,high teperature resistant,safe and reliable,rated voltage up to 660V is the best choice for low voltage power distribution cabiner fixed bus.


Technical Data

  • Operating temperature:-40--+140
  • Insert:Brass.steel with Zn coating
  • Material:BMC(bough moulding compound)  SMC(sheet moulding compound)
  • Color,insert,mateerial in capability accordance with customer need.
Values Style
SM-25 SM-30 SM-35 SM-40 SM-51 SM-76
Temsile strength(lbs) 500 550 600 650 1000 1500
Torgue strength(fr lba) 6 8 10 10 20 40
Voltage withstand(kv) 6 8 10 12 15 25
Screw(mm) 6 8 8 8 8 10
Weight(g) 28 44 50 56 83 233

Type Diameter Zize GW/pcs QTY/box
SM25 M6 25X30 0.04kg 20
SM30 M6 30X32 0.04kg 20
SM30 M8 30X32 0.04kg 20
SM35 M6 35X32 0.06kg 10
SM35 M8 35X32 0.06kg 10
SM40 M8 40X40 0.09kg 10
SM51 M8 51X36 0.12kg 10
SM76 M10 76X50 0.15kg 10
SM7105 M6 38X32 0.07kg 10
SM7105 M8 38X32 0.07kg 10
SM7110 M8 45X42 0.1kg 10
SM7110 M10 45X42 0.1kg 10
SM7120X50 M10 51X51 0.18kg 10
SM7120X60 M10 60X54 0.2kg 10
SM BUSBAR SUPPORTS
