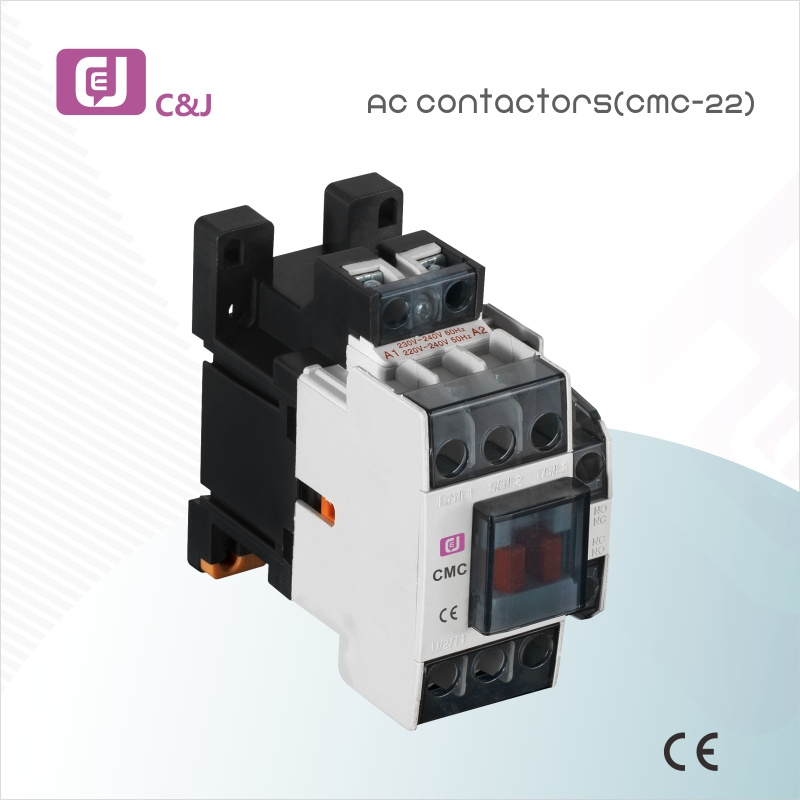

CMC-22 New Type AC/DC CJMC Series 3 Phase AC Magnetic Contactor with CE Certification

CMC AC Contactor is suitable for using in the circuits up to the rated voltage 660V,AC 50Hz or 60Hz, rated current up to 85A, for making, breaking frequently starting&machine-interlocking device etc, it becomes the delay contactor,mechanical interlocking contactor, star-delta starter, with the thermal relay, it is combined into the electromagnetic starters. The contactor is according to IEC60947-4-1.

Products Details

Product Parameter

Type CMC9 CMC12 CMC18 CMC22 CMC32 CMC40 CMC50 CMC65
IEC60947 3 phase squirrel cage motor AC3 200~240V 2.5kW 11A 3.5kW 13A 4.5kW 18A 5.5kW 20A 7.5kW 32A 11kW 40A 15kW 50A 18.5kW 65A
380~440V 4kW 9A 5.5kW 12A 7.5kW 18A 11kW 20A 15kW 26A 18.5kW 35A 22kW 48A 30kW 65A
500~550V 4kW 7A 7.5kW 12A 7.5kW 13A 15kW 22A 18.5kW 28A 22kW 32A 30kW 43A 33kW 60A
690V 4kW 5A 7.5kW 9A 7.5kW 9A 15kW 18A 18.5kW 20A 22kW 23A 30kW 28A 33kW 35A
AC4 200~240V 1.5kW 8A 2.2kW 11A 3.7kW 18A 3.7kW 18A 4.5kW 20A 5.5kW 25A 7.5kW 35A 11kW 50A
380~440V 2.2kW 6A 4kW 6A 4kW 9A 5.5kW 13A 7.5kW 17A 11kW 24A 15kW 32A 22kW 47A
Ith AC1 25A 25A 40A 40A 50A 60A 80A 100A
Endurance ×10000 times Electrical 250 250 250 250 200 200 200 200
Mechanical 2500 2500 2500 2500 1500 1500 1000 1000
Aux.Contact (Standard) 1a1b 1a1b 1a1b 1a1b 2a2b 2a2b 2a2b 2a2b
Aux.Contact (Standard) Side-on Screw and DIN Rail
Head-on AU 1 AU 1 AU 1 AU 1 AU 1 AU 1 AU 1 AU 1
Mounting method AU 2,AU 4 AU 2,AU 4 AU 2,AU 4 AU 2,AU 4 AU 2,AU 4 AU 2,AU 4 AU 2,AU 4 AU 2,AU 4
Dimension(mm)(W×H×D) 44×78×86.8 44×78×86.8 44×78×86.8 44×78×86.8 44×78×86.8 44×78×86.8 44×78×86.8 92×122×117.3
Mounting Dimension(mm)(W×D) 30~35×48~59 35×60 30~35×48~59 35×60 30~35×48~59 35×60 30~35×48~59 35×60 30~35×48~59 35×60 30~35×48~59 35×60 100×50~60 100×60 100×50~60 100×60
CMC75 CMC85 CMC100 CMC125 CMC150 CMC180 CMC220 CMC300 CMC400
22kW 75A 25kW 80A 30kW 100A 37kW 125A 45kW 150A 55kW 180A 75kW 220A 90kW 300A 125kW 400A
37kW 75A 45kW 80A 55kW 100A 60kW 125A 75kW 150A 90kW 180A 132kW 220A 160kW 300A 200kW 400A
37kW 64A 45kW 75A 55kW 85A 60kW 90A 90kW 140A 110kW 180A 132kW 200A 160kW 250A 225kW 350A
37kW 42A 45kW 45A 55kW 65A 60kW 70A 90kW 100A 110kW 120A 132kW 150A 200kW 220A 250kW 300A
13kW 55A 15kW 65A 19kW 80A 22kW 93A 30kW 125A 37kW 150A 45kW 180A 55kW 220A 75kW 300A
25kW 52A 30kW 62A 37kW 75A 45kW 90A 55kW 110A 75kW 150A 90kW 180A 110kW 220A 150kW 300A
110A 135A 160A 160A 210A 230A 275A 350A 450A
200 200 100 100 100 100 100 100 50
1000 1000 500 500 500 500 500 500 500
2a2b 2a2b 2a2b 2a2b 2a2b 2a2b 2a2b 2a2b 2a2b
Screw and DIN Rail Screw only
AU 1 AU 1 AU 100 AU 100 AU 100 AU 100 AU 100 AU 100 AU 100
AU 2,AU 4 AU 2,AU 4 - - - - - - -
92×122×117.3 92×122×117.3 100×157.4×146.5 100×157.4×146.5 120×166.8×157 138×203×181 138×203×181 163×243×198 163×243×198
100×50~60 100×60 100×50~60 100×60 80×100 90×125 80×100 90×125 100×125~130 45×190 120×190 45×190 120×190 50×210 60×220 145×225 50×210 60×220 145×225
